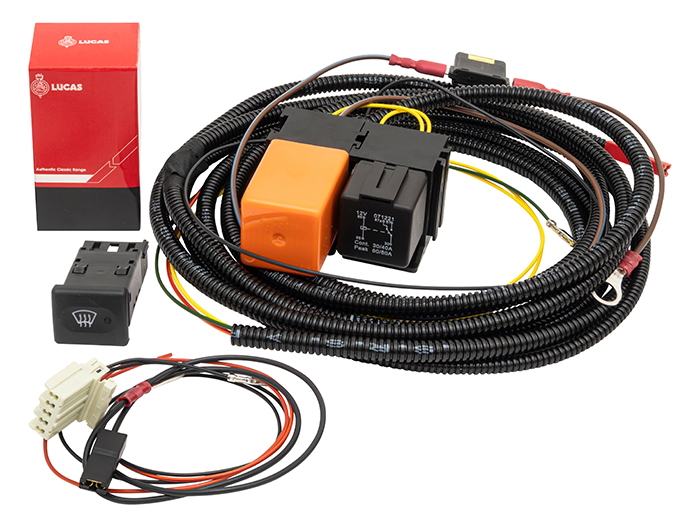

Heated Windscreen Wiring Kit

OEM style Lucas Classic switch (YUG000460LNFG)

By Mobile Centre

Defender - 2002 onwards

Heated front screen wiring kit by Mobile Centre is complete with OEM style Lucas Classic switch (YUG000460LNFG) to suit Defenders fitted with the OEM style heated screens with two tabs or wires - one in each corner.

• Kit requires minimal connections such as positive & negative power, ignition live and illumination live.
• The kit is rated at 20A with an “on” time of around ten minutes suitable for use with heated screen part number LR058447 or equivalent
• Power cable is 500mm from relay set to battery terminated with M8 rings.
• Heated screen supply cable is 3000mm long from relay to screen terminated in an insulated female spade.
• Screen earth cable 500mm long supplied terminated with a female spade and M8 ring terminal.
