Crankshaft Pulley Set

For V6 3.0L & V8 5.0L

Discovery 4

Range Rover Sport

Range Rover

Engine codes include: 3.0L AJ-126/306PS, 5.0L AJ133/508PS and 508PN.

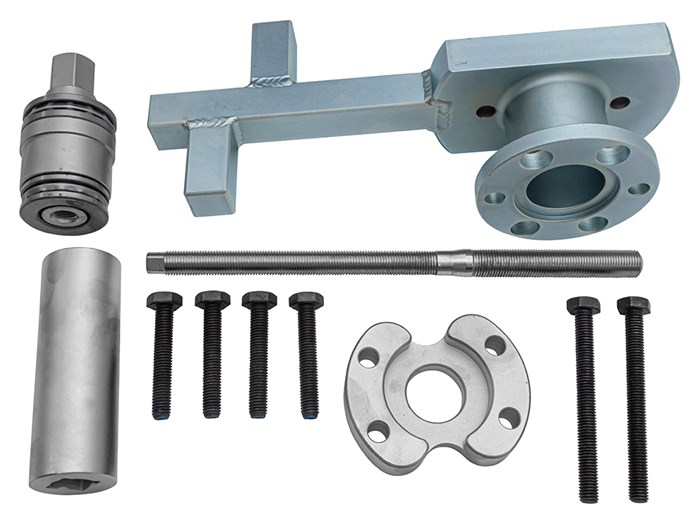

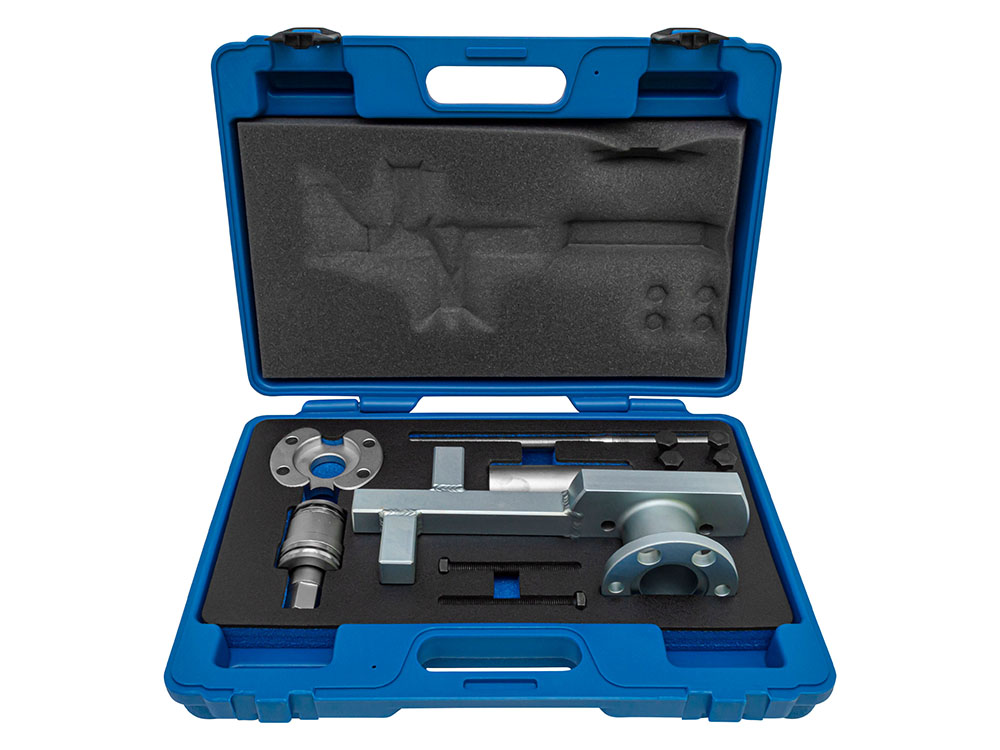

Set of tools required for the removal of the front crankshaft pulley (crankshaft vibration damper) fitted to the JLR 3.0L V6 and 5.0L V8 petrol engines. The crankshaft pulleys used on these engines are tightened to 200Nm + 270 degrees so are very tight to undo and must be held by a substantial holding tool which the kit provides. Also included in the kit are the pulley puller components required to remove the pulley without damage. Important: Ensure the force screw is well lubricated with molybdenum disulphide grease before use.
